OralScan

OralScan is an optical imaging multimodal device for the early detection of (pre-) cancerous lesions of the oral cavity. The device operates on the principle of diffuse reflectance and tissue autofluorescence wherein light undergoes multiple absorption and scattering events before emerging from the tissue surface.

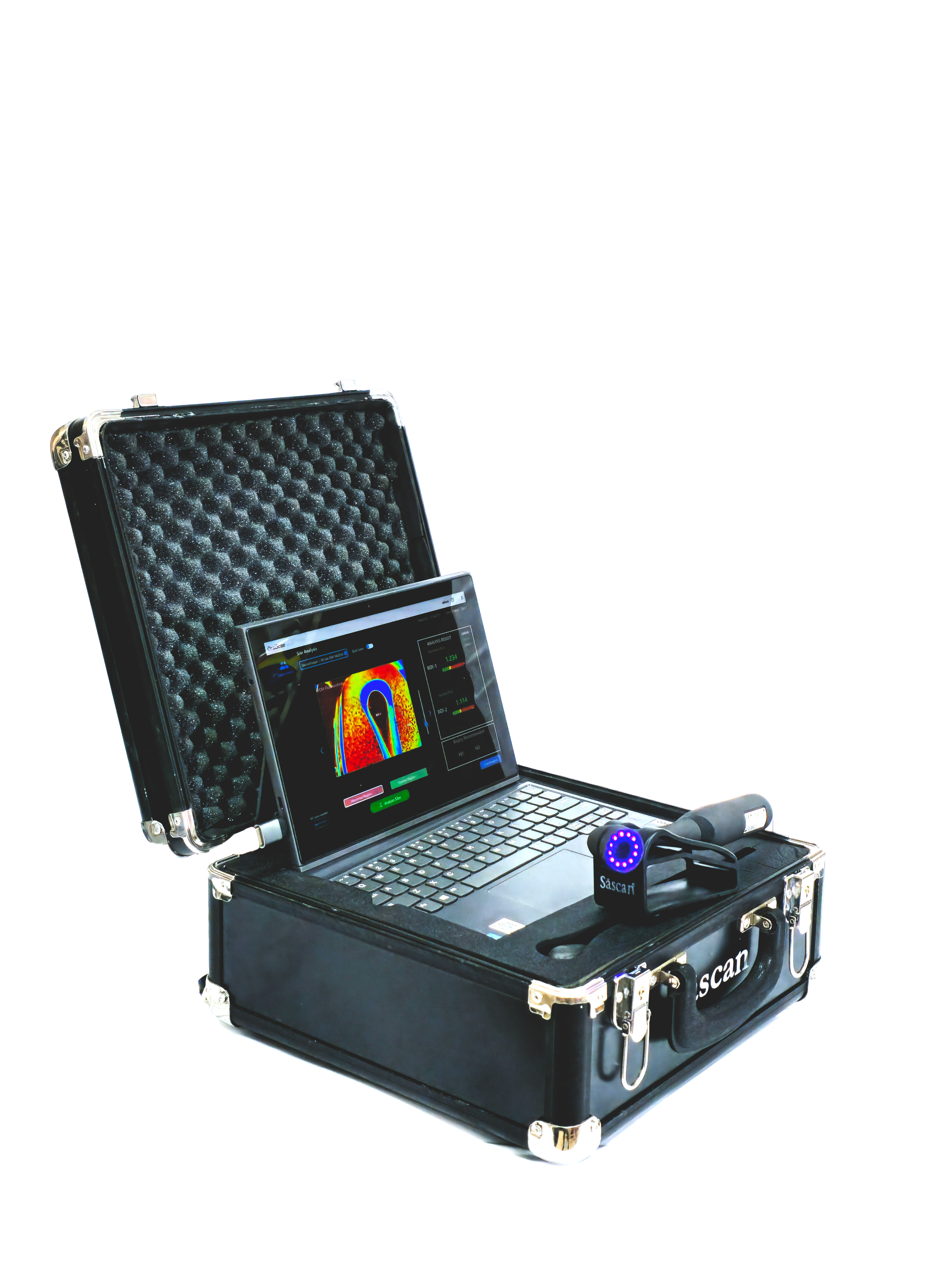

Package includes:  1 x OralScan Probe,   1X Calibration Unit,  1 x Probe stand,  1 x OralView -Intra Oral Camera,  1 x  Carry casing,  1 x Windows Laptab (with pre-installed software),  1 x Digital pen,  1 x  Pendrive for OralView software,  1 x Charger for Laptab,  2 x  Type C Adapter,   1 x  Warranty Card,   1 x IFU
Package Dimension: 32 x 31 x 17 cm
Delivery: Ships in 15 days after receiving the full payment







Original price was: ₹800,000.00.Current price is: ₹635,000.00.

    NEED A FORMAL QUOTE

    Enter the details here and member of the team will get back to you soon!






    Category:

    OralScan is an optical imaging multimodal device for the early detection of (pre-) cancerous lesions of the oral cavity. The device operates on the principle of diffuse reflectance and tissue autofluorescence imaging. Light that goes inside the tissue undergoes multiple absorption and scattering before returning back from the tissue to the sensor. Tumour tissues undergo biochemical and morphological changes during the process of carcinogenesis, and diffusely reflected light carries information on these changes . The device uses an optical system with custom-built software and algorithms for tissue analysis. OralScan enables the physician to visualize and discriminate between healthy and potentially malignant sites of the oral cavity. OralScan maps changes in oxygenated haemoglobin (HbO2) absorption and  utilizes a cloud-based machine learning algorithm for real-time feedback on tissue status. The device can also be used to locate the most malignant site for biopsy and avoid under diagnosis.

    Know More: https://oralscan.sascan.in/

    Weight .5 kg
    Dimensions 10 × 5 × 20 cm

    Specification

    • Detects oral cancer by mapping changes in tissue autofluorescence and oxygenated hemoglobin absorption utilizing multispectral imaging technology.
    • Uses intuitive software along with a cloud-based ML algorithm for quantitative and real-time feedback on tissue status.
    • Locates the most malignant site for tissue biopsy and avoids false negatives
    • A portable device that can also be used in remote locations without electricity or internet access.
    • Quick and pain-free screening makes it ideally suited for periodic reviews
    • No drugs, harmful radiation or side effects

    Warranty

    2 years
